PRESENT PRACTICE

Conventional tea industry is mostly depend on batch displaying technology or conventional eletronics equipment to get the 'Tea Made' data, which has more breakdown chances due frequent ON/OFF cycles and as a consequence prone to give enoneous information. Overflowing and loss ofbloom in 'Made Tea' are other disadvantages of these systems.

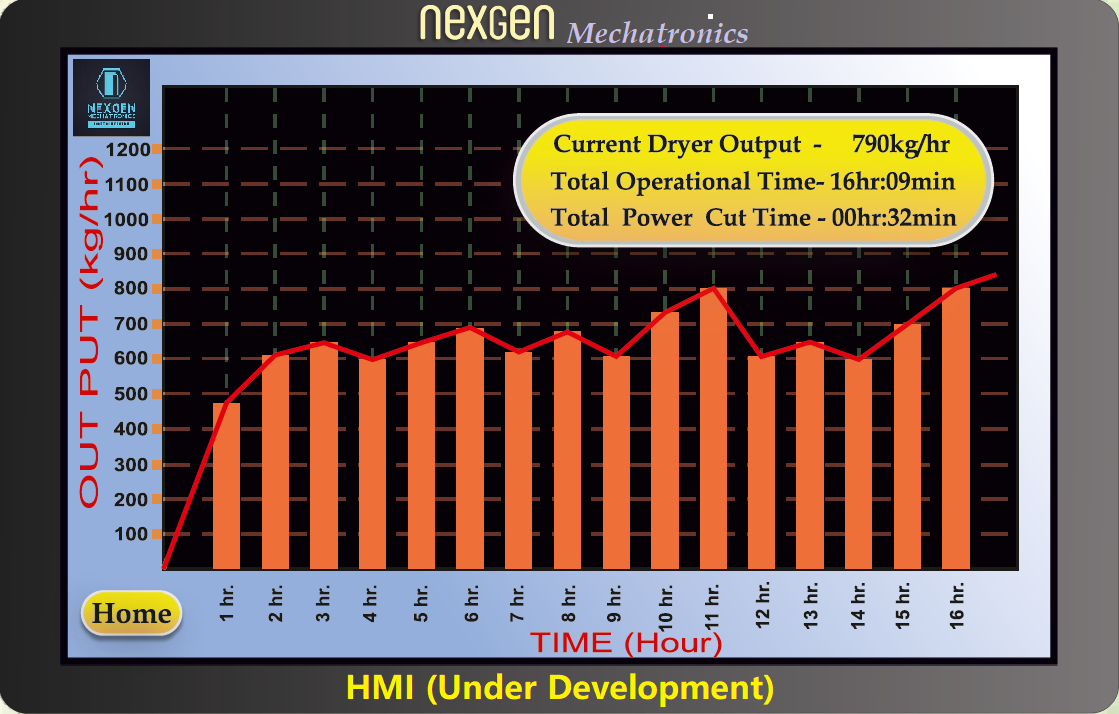

TO OVERCOME aforesaid problems, NexGen has developed Online Dryer Output Monitoring System (Smart Analyzer) which continuously monitors & records all the parameters in real time basis, e.g. average hourly Output of 'Tea Made' and total operation time of each production cycle, power cut time etc.

Salient Features / Advantage

• Continuous online monitoring, recording and display of hourly average Output of Made Teas.
• System also helps in keep the bloom of made tea intact.
• Keep the loosely bonding nature of teas intact.
• Keep the leaf twist & brittleness nature (Orthodox/Green Teas) of teas intact.
• No stalk damage (Orthodox/Green Teas) of teas.
• No spillage of teas.
• Minimal space required & Minimal manual intervention. Hassle free installation.
• Optional Interface facility eg. SMS.

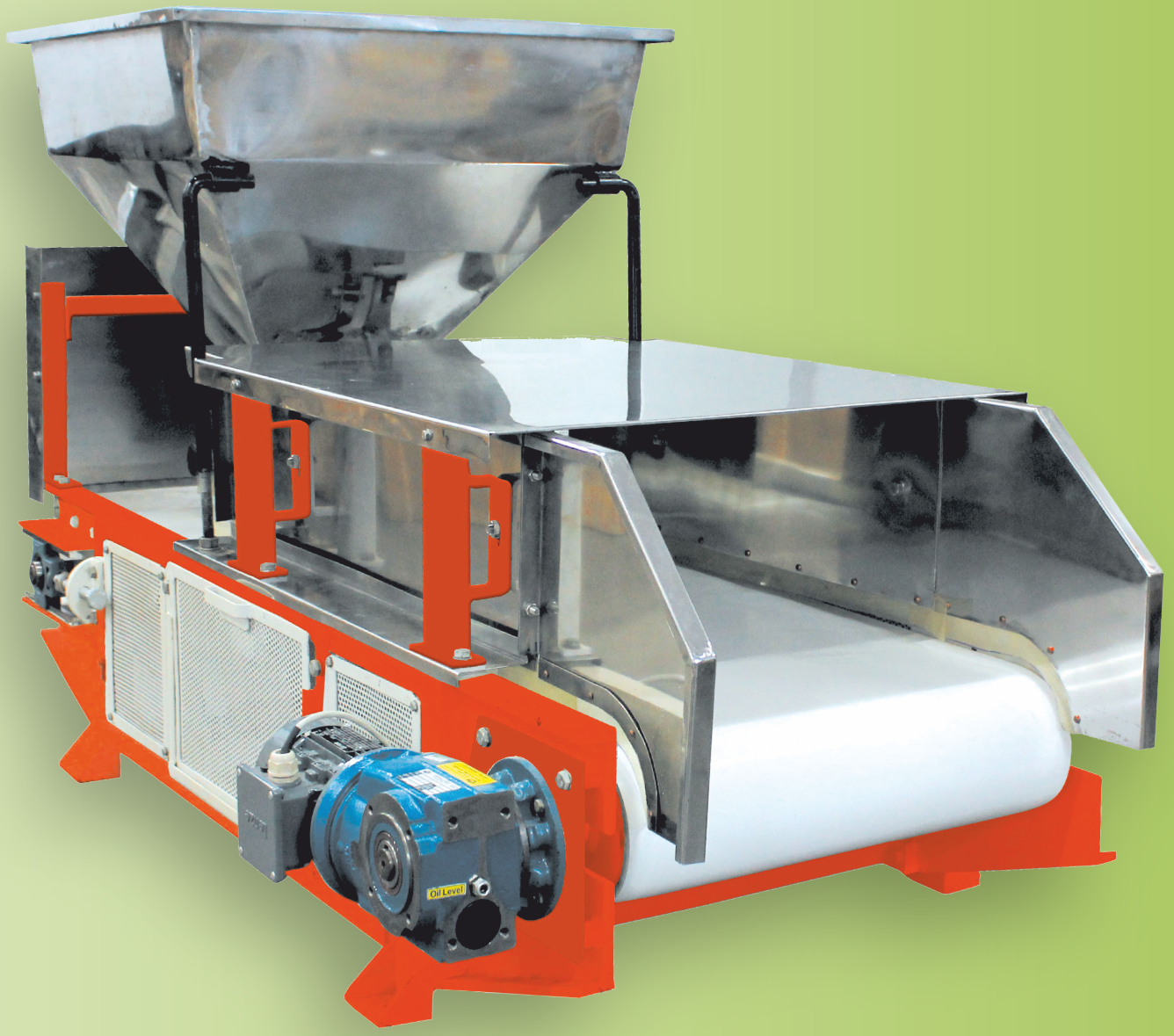

• Dimension (Approx): Length 1700 mm, width 700 mm, height 1100 mm.
• All the parts coming in contact with the Made Tea are food grade stainless steel.
• Conveyor belt is made of food grade, heat resistant.
• Information of last 64 batches / production cycles is stored in the internal memory.
• Optional Interface facility e.g. /SMS/Wireless Printer.
