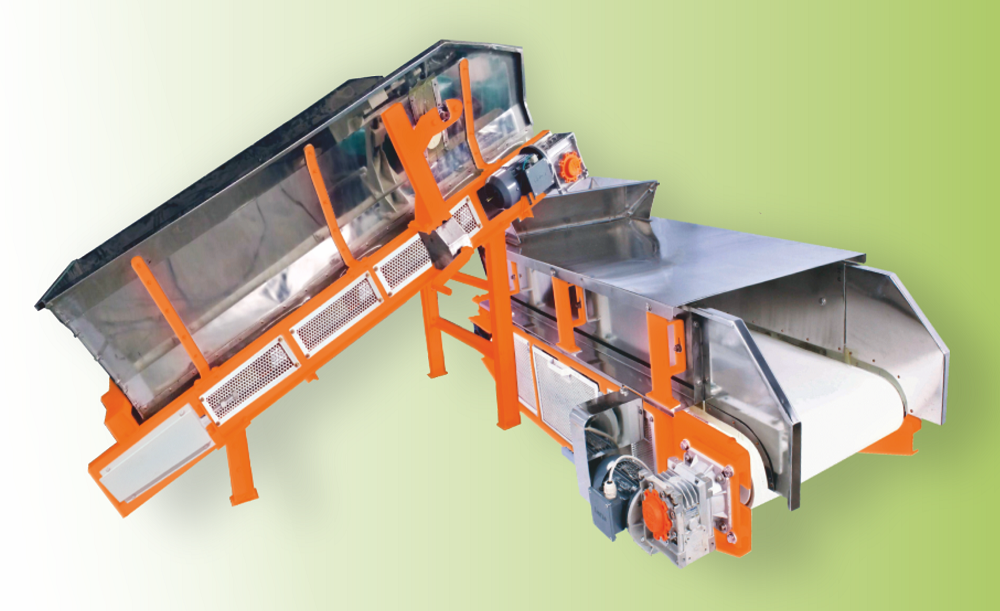

Uniform Rotorvane Feeder (Auto Feed)

Uniform feed to Rotorvane is very much important to achieve the proper preconditioning of leaf in Rotorvane & better cut in CTC machine. With the present, direct manual feeding of leafs in the Rotorvane, it is not possible to achieve even 60-70% of uniform feeding of leafs in Rotorvane. Non-uniform feeding in Rotorvane results improper cutting in CTC machine and poor price realization of Made tea.

To overcome aforesaid problem, AFU 20NexGen has successfully designed & developed Automatic Uniform Rotorvane Feed unit (Auto Feed) which gives more than 95 % accuracy in uniform feeding of leafs in Rotorvane irrespactive of the irregular or uneven feeding of leaf by operators.

This uniform feed of leafs in rotorvene help to achieves better and uniform preconditioning of tea leafs in Rotorvane which ensure proper cutting of processed leaf in CTC machine resulting in better quality of ‘MADE TEA’ and higher price realization with substantial energy & manpower savings.

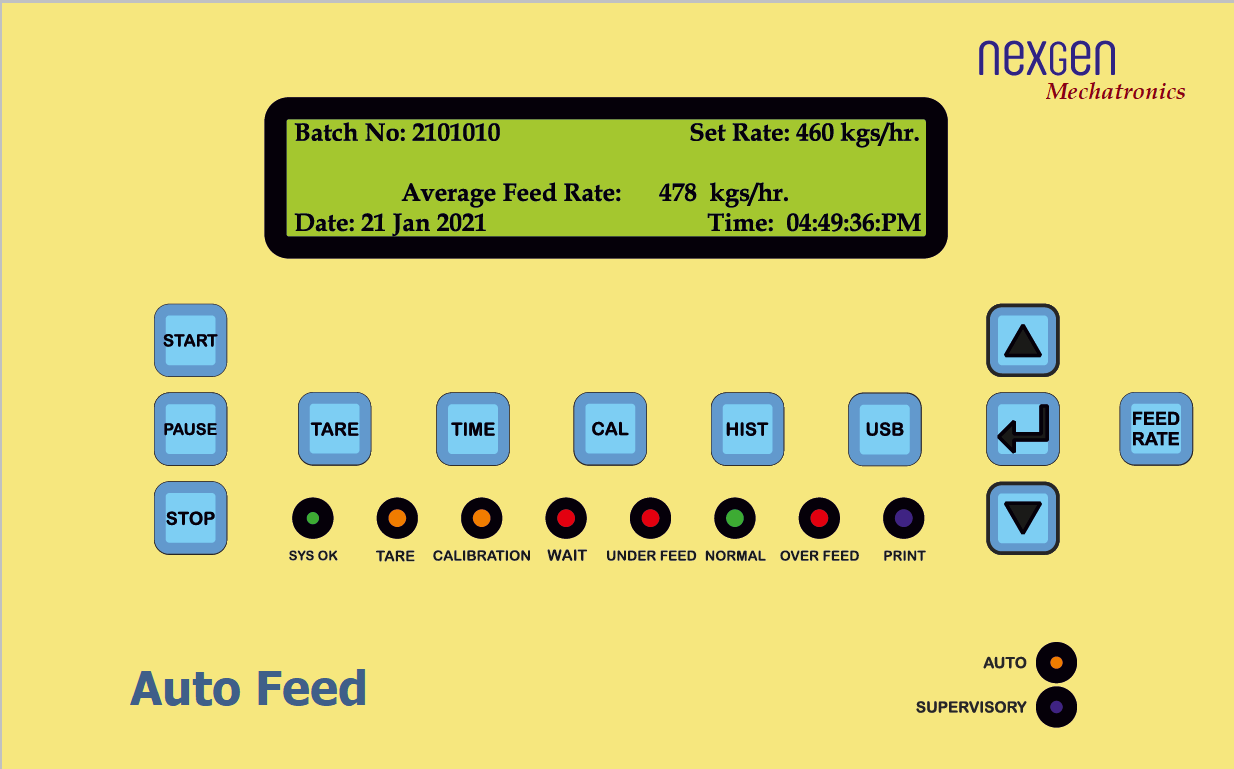

Panel View





Salient Features / Advantage

  • Maintains a continuos & uniform discharge rate of withered leaf into the rotorvane within ±3% feed accuracy.
  • Microprocessors based logic control in closed loop gives higher accuracy & rugged performance.
  • Uniform feeding in Rotorvane, through Auto Feed helps in reduce the maintenance cost of CTC machines.
  • Online display of total quantity withered leafs with Audio visual annunciation.
  • History saved up to past 64 Batches.
  • HMI touch Panel with Whatsup, Wireless communication for remote monitoring & USB data transfer (Optional).
  • Rugged Design to withstand harsh factory Conditions.
  • Elaborate self-diagonstics & well-defined calibration procedure for consistent operation.
  • Specially designed power supply to withstand power fluctuations from 130 VAC- 280 VAC.
  • Capacity may vary from 500 kgs/hr to 1200 kgs/hr of withered leafs.
  • The 2nd stage of Auto Feed buffers & controls uneven feed of withered leafs & the main feed unit maintains high accuracy level of feeding into rotorvane. It also saves manpower & electrical energy.
